16M GRP TENNANT DESIGN
Need a 'People Mover'?.
This Malcolm Tennant designed ferry meets customer demand for a 25 knot, full load operating speed and 60 pax capacity. The design uses the very efficient CS [canoe stern] hull shape and cost effective flat panel construction for topsides, wing deck and superstructure. The ferry has proven operation of 18 hours a day for 7 days a week on Hong Kong Harbour with fuel useage of only 3.6 litres [ 0.95 US gals] per nautical mile at 25 knots in full load condition.
For 16M GRP Tennant Design Specification PDF, please click here..
16M GRP TENNAT DESIGN SPECIFICATIONS
| LOA : | 16M |
| BEAM : | 5.78M |
| DRAFT : | 1.05M |
| DISPLACEMENT : | 13,360 KG |
| TOP SPEED : | 25 knots |
| CRUISING SPEED : | 20 knots |
| PAX : | 60 max |
Design & Construction to USCG Small Passenger Vessel Standard.
Structural
Quantities
- Hull, solid GRP bottom, Topsides and Structural bulkheads GRP/Navicel PVC foam core
- Vinylester resin to outer layers, isopthalic resin inner.
- Cabin GRP/Navicel PVC foam core
- Internal and non-structural construction in GRP/PPC honeycomb Watertight compartments
- Foam filled watertight crash area in forepeak
- Propeller Shaft Stern Tube
- Rudder Shaft Tube
- Thru hulls for S/W cooling and ancillary services
- Overboard discharges
- 80 – 100kgms/m2.
- 80 – 100kgms/m2
- 4
- 2
- 2
- 2
- 6
- 6
Hull Finishing
Quantities
- Primer- epoxy high build surfacing primer, 2 coats
- Fairing Compound
- Paint- 2 part polyurethane, Chugoku, 2 coats
- Antifouling paint 2 coats
- Non-skid Deck
- 2
- 1
- 3
- 2
- 3
Tanks, Piping & Pumps
Quantities
- Fresh Water Tanks - Fiberglass 200 Liters port side
- Diesel Fuel Tanks – 700 Litres each – GRP, vinyl ester
- Senders on Fuel Tanks
- Diesel Fuel Header Manifold
- Diesel Fuel Piping Fresh water piping and fittings- HEP2O or Speedfit Shore Water Supply Fitting
- Salt Water piping Through hull fittings - Bronze
- Seacock Valves - Bronze
- Sea Strainers
- Check Valves
- Tank Vents
- Hydraulic Steering Lines/helm pump SeaFirst H/D
- Bilge Pumping- Manual Amazon
- Bilge pumps – automatic, Jabsco 3000 GPH
- Fresh water Pressure Pump, Aquafax 38LPM or similar
- Waste Piping, low odor Manual pump for waste pumpout w/3 way valve for o/board discharge
- Black water tank, H/D plastic 120L
- 1
- 2
- 2
- 2
- 1
- 6
- 6
- 1
- 3
- 6
- 3
- 1
- 2
- 4
- 1
- 1
Mechanical
Quantities
- 140 amp alternator supplied with engine
- Service batteries, 8D
- Engine start battery, 120 ampere hour
- Battery Boxes with Covers for all battery sets
- Battery isolator/VSR
- Battery Switches
- Electrical Wiring – Marine Grade- color coded per USCG Electrical Panel 12VDC
- Battery monitoring panel
- Bilge pump control panel
- Lighting System Wiring 12 VDC
- Nav lights LED, Hella
- Anchor Light LED
- Instrumentation lighting LED
- Engine Room Lighting flourescent
- Interior lighting LED warm white
- Cockpit lighting LED w/proof
- Courtesy/ Walkway lighting lights LED, blue
- Manually controlled halogen search lights
- Sockets 12 VDC- Helm station and cockpit
- PVC Conduit for all power wiring
- 2
- 3
- 2
- 3
- 1
- 2
- 1
- 1
- 1
- 1
- 4
- 1
- 2
- 2
- 10
- 2
- 10
- 2
- 2
- 1

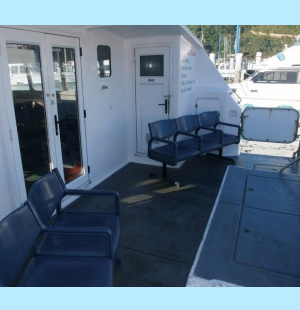

Main Deck Equipment
Quantities
- Forward facing seating for 70pax Electric Windlass/Capstan, Lewmar V3 with foot switches
- Front windows – marine grade, clear toughened glass.
- Side window, tinted toughened glass.
- Rear window, tinted toughened glass
- Windscreen wipers/washers, H/D
- SS guardrails per design Waterproof hatch for Chain Locker
- Bow Roller, Anchor 16 kg Delta, chain 3/8” High Test, rope ¾”
- Stern lockers
- Stowage hatch forward for fenders and mooring lines.
- Overhead or under seat stowage for life jackets. Cleats, SS - 2 x foredeck 10”, 6 x side 10”
- Deck Filler Fresh Water- Port & Starboard
- Deck Filler Diesel Fuel- Port & Starboard
- Port and starboard boarding points with SS guard rails
- 1
- 10mm
- 6mm
- 6.mm
- 2
- 1
- 1
- 2
- 1
- 8
- 2
- 2
Helm Station/Bridge Equipment
Quantities
- Engine instrument panels
- SS destroyer type steering wheel Magnetic compass
- Diesel tank Gauges
- Fresh Water tank gauges
- Pilot’s Seat
- Crew Seat
- Gear Lockers
- 12 Volt Horn
- 1
- 1
- 2
- 1
- 1
- 1
- 1
- 1
Interior Finish
- Nidacore PVC honeycomb subfloors
- Paint finish for Walls
- Cork or vinyl Flooring
- Ceiling Material- GRP finish panels
Structural
Quantities
- Compartment equipped with an electric flush toilet and wash basin one each side situated aft
- 2
Safety Equipment
Quantities
- Lifebuoys, SOLAS
- First aid kit
- SOLAS approved life jacket
- Fire extinguishers 4ltr foam
- 2.5 kg CO2
- FireBoy automatic smothering cylinder in engine room
- 6
- 1
- 63
- 3
- 2
- 2
